Alluvial diagram — alluvial • alluvial

Drawing alluvial diagrams, also known as parallel set plots.

Usage

alluvial(
  ...,
  freq,
  col = "gray",
  border = 0,
  layer,
  hide = FALSE,
  alpha = 0.5,
  gap.width = 0.05,
  xw = 0.1,
  cw = 0.1,
  blocks = TRUE,
  ordering = NULL,
  axis_labels = NULL,
  mar = c(2, 1, 1, 1),
  cex = par("cex"),
  xlim_offset = c(0, 0),
  ylim_offset = c(0, 0),
  cex.axis = par("cex.axis"),
  axes = TRUE,
  ann = TRUE,
  title = NULL
)

Arguments

...: vectors or data frames, all for the same number of observations
freq: numeric, vector of frequencies of the same length as the number of observations
col: vector of colors of the stripes
border: vector of border colors for the stripes
layer: numeric, order of drawing of the stripes
hide: logical, should particular stripe be plotted
alpha: numeric, vector of transparency of the stripes
gap.width: numeric, relative width of inter-category gaps
xw: numeric, the distance from the set axis to the control points of the xspline
cw: numeric, width of the category axis
blocks: logical, whether to use blocks to tie the flows together at each category, versus contiguous ribbons (also admits character value "bookends")
ordering: list of numeric vectors allowing to reorder the alluvia on each axis separately, see Examples
axis_labels: character, labels of the axes, defaults to variable names in the data
mar: numeric, plot margins as in par
cex, cex.axis: numeric, scaling of fonts of category labels and axis labels respectively. See par.
xlim_offset, ylim_offset: numeric vectors of length 2, passed to xlim and ylim of plot, and allow for adjusting the limits of the plotting region
axes: logical, whether to draw axes, defaults to TRUE
ann: logical, whether to draw annotations: category labels. Defaults to TRUE
title: character, plot title

Value

Invisibly a list with elements:

endpoints

A data frame with data on locations of the stripes with columns:

...: Vectors/data frames supplied to alluvial through ... that define the axes
.bottom,.top: Y locations of bottom and top coordinates respectively at which the stripes originate from the axis .axis
.axis: Axis number counting from the left

category_midpoints

List of vectors of Y locations of category block midpoints.

alluvium_midpoints

A data frame with location of midpoints on each alluvium segement with columns:

...: Vectors/data frames supplied to alluvial through the ...
.axis_from, .axis_to: IDs of axes that a segment originates from and goes to
.x, .y: X and Y locations of the alluvium midpoints
.slope: The (approximate) slope of the alluvium at the midpoint

Note

Please mind that the API is planned to change to be more compatible with dplyr verbs.

Examples

# Titanic data
tit <- as.data.frame(Titanic)

# 2d
tit2d <- aggregate( Freq ~ Class + Survived, data=tit, sum)

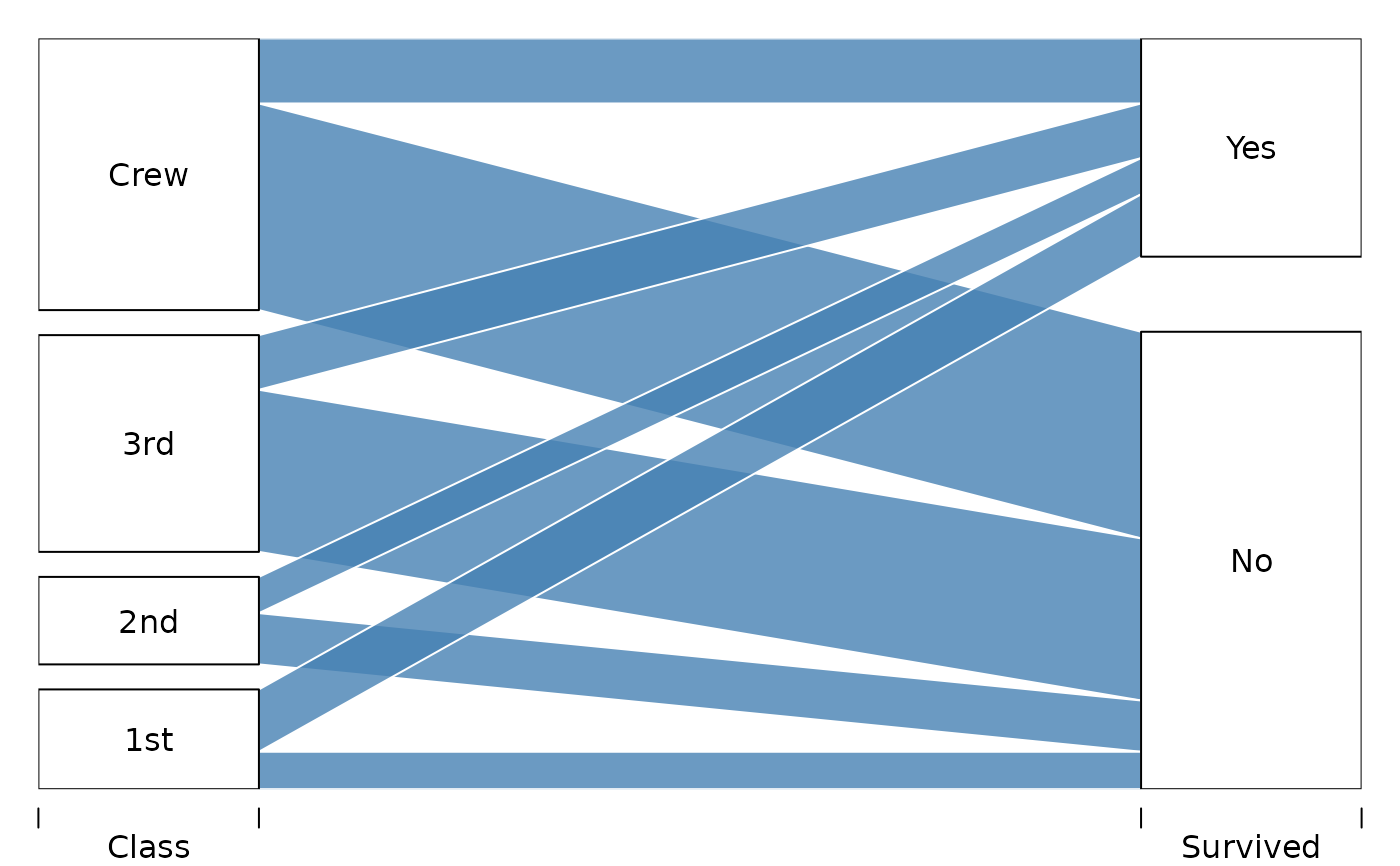

alluvial( tit2d[,1:2], freq=tit2d$Freq, xw=0.0, alpha=0.8,
         gap.width=0.1, col= "steelblue", border="white",
         layer = tit2d$Survived != "Yes" )

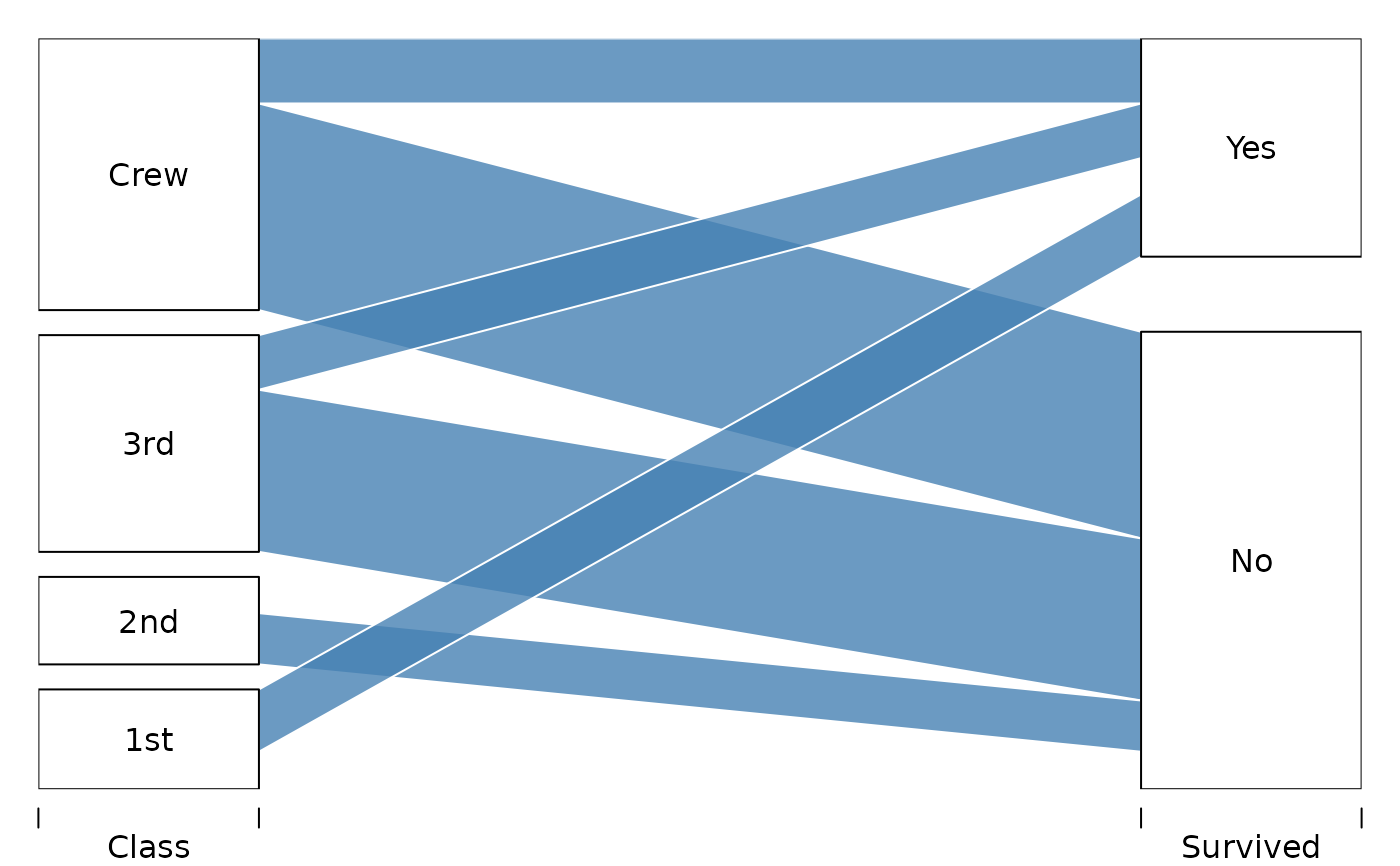

alluvial( tit2d[,1:2], freq=tit2d$Freq,
         hide=tit2d$Freq < 150,
         xw=0.0, alpha=0.8,
         gap.width=0.1, col= "steelblue", border="white",
         layer = tit2d$Survived != "Yes" )

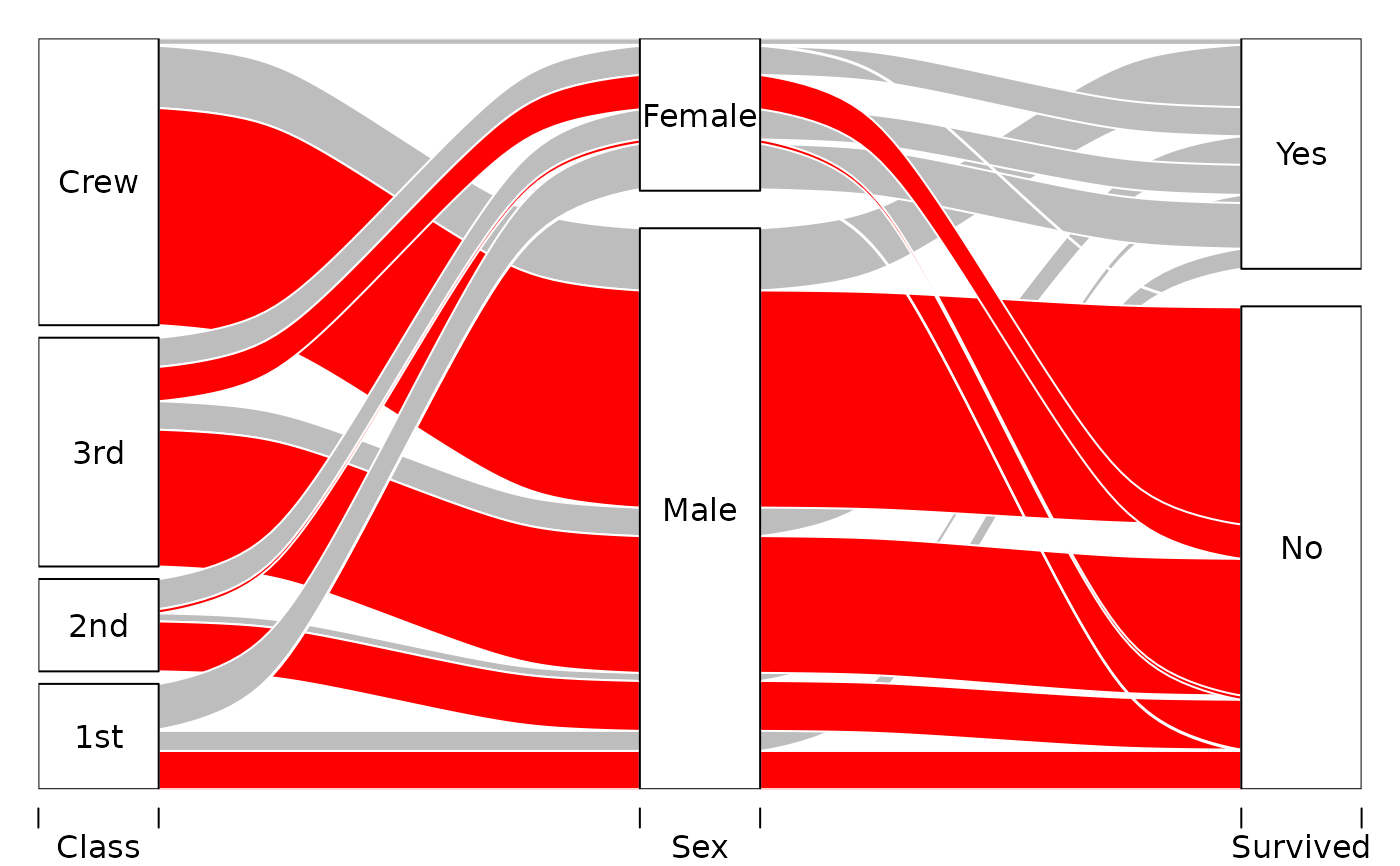

# 3d
tit3d <- aggregate( Freq ~ Class + Sex + Survived, data=tit, sum)

alluvial(tit3d[,1:3], freq=tit3d$Freq, alpha=1, xw=0.2,
         col=ifelse( tit3d$Survived == "No", "red", "gray"),
         layer = tit3d$Sex != "Female",
         border="white")



# 4d
alluvial( tit[,1:4], freq=tit$Freq, border=NA,
         hide = tit$Freq < quantile(tit$Freq, .50),
         col=ifelse( tit$Class == "3rd" & tit$Sex == "Male", "red", "gray") )

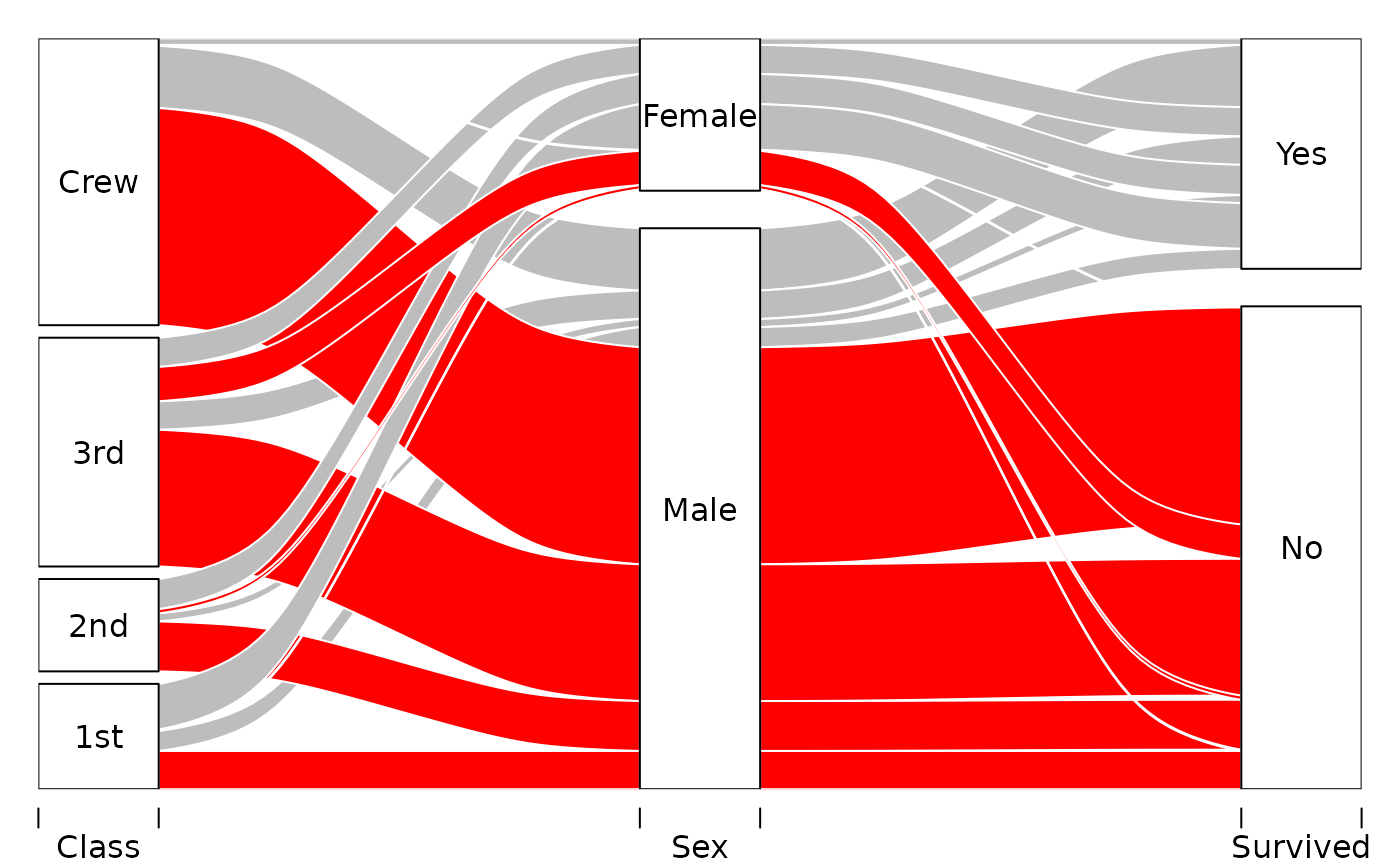

# 3d example with custom ordering
# Reorder "Sex" axis according to survival status
ord <- list(NULL, with(tit3d, order(Sex, Survived)), NULL)
alluvial(tit3d[,1:3], freq=tit3d$Freq, alpha=1, xw=0.2,
         col=ifelse( tit3d$Survived == "No", "red", "gray"),
         layer = tit3d$Sex != "Female",
         border="white", ordering=ord)


# Possible blocks options

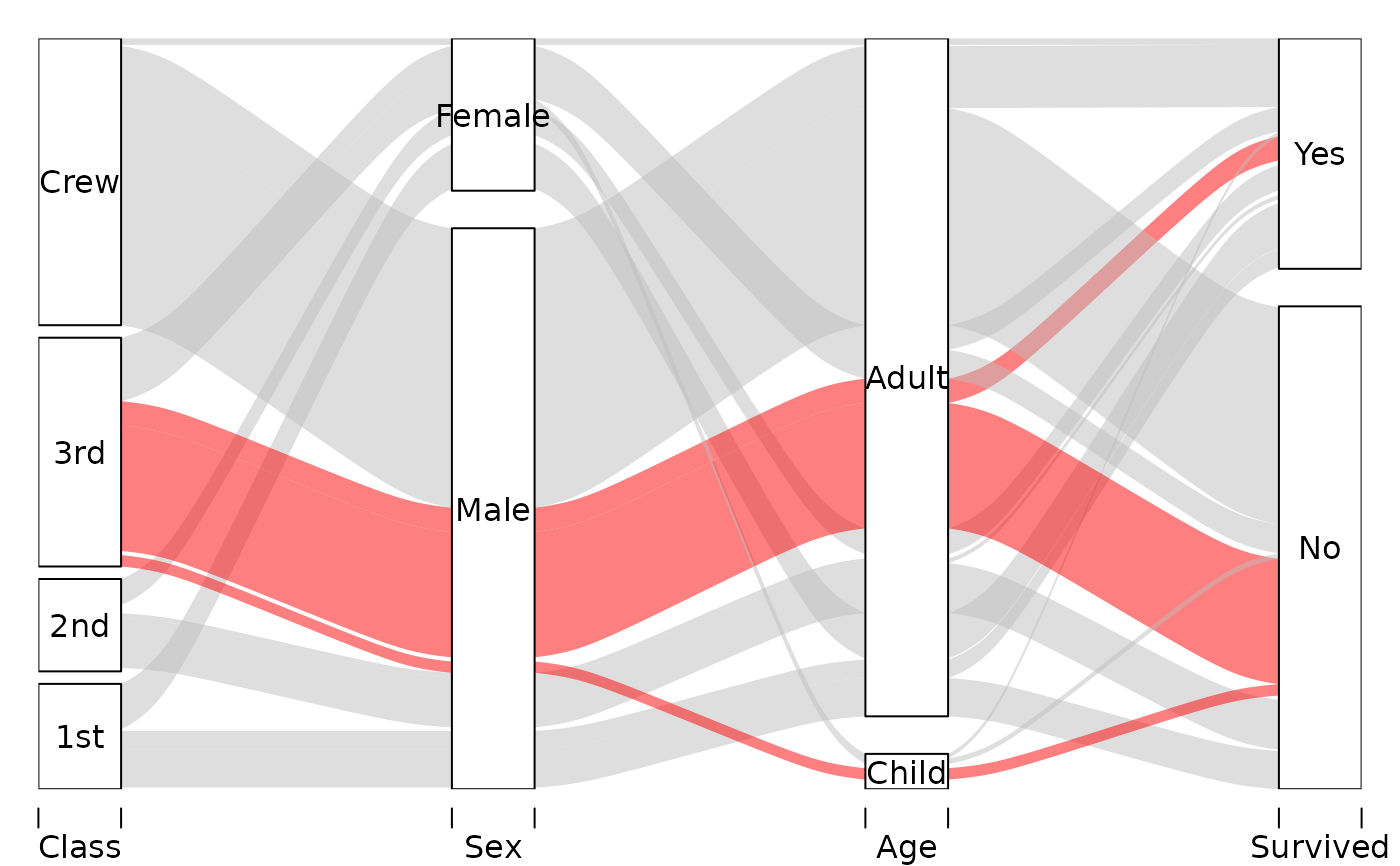

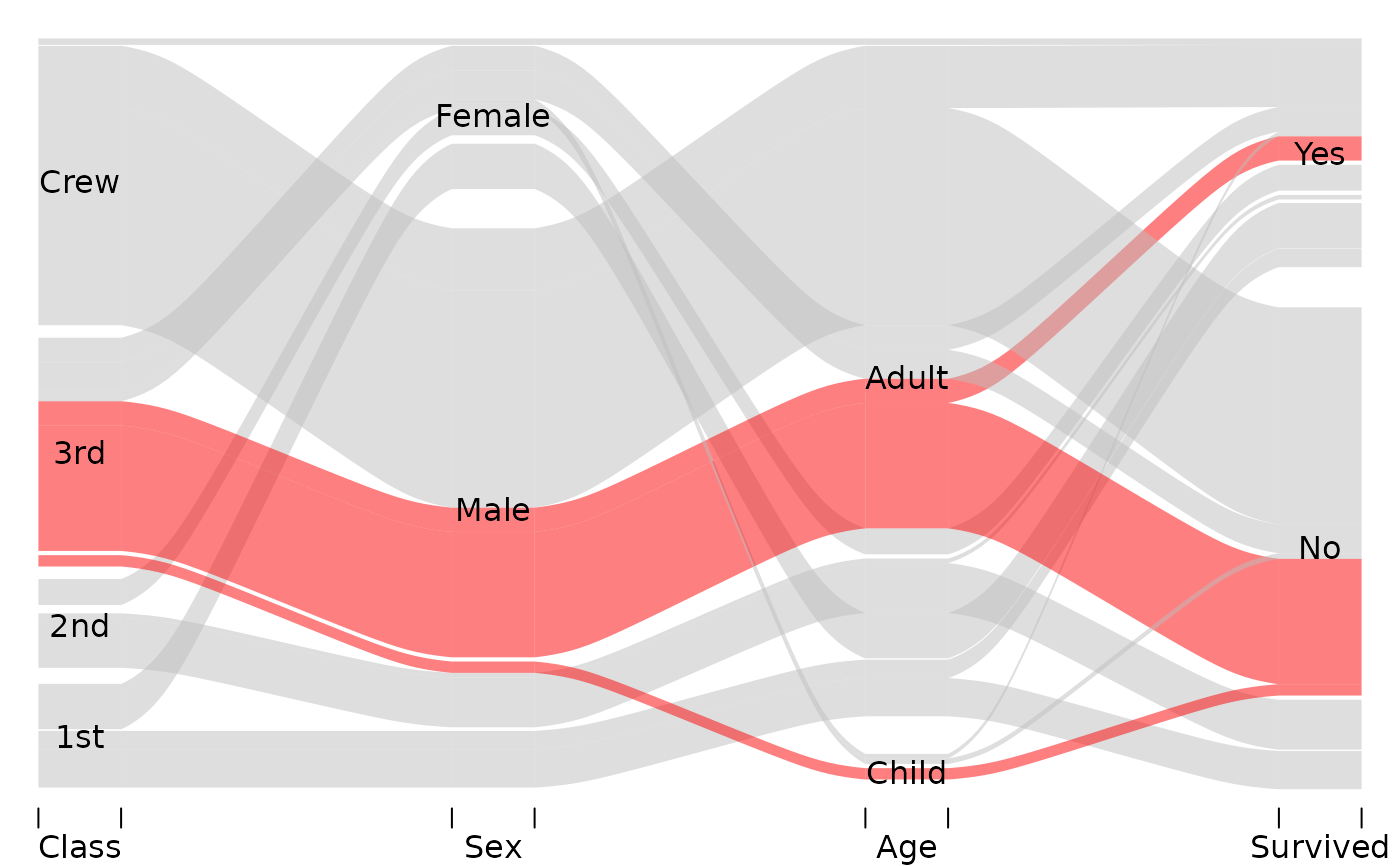

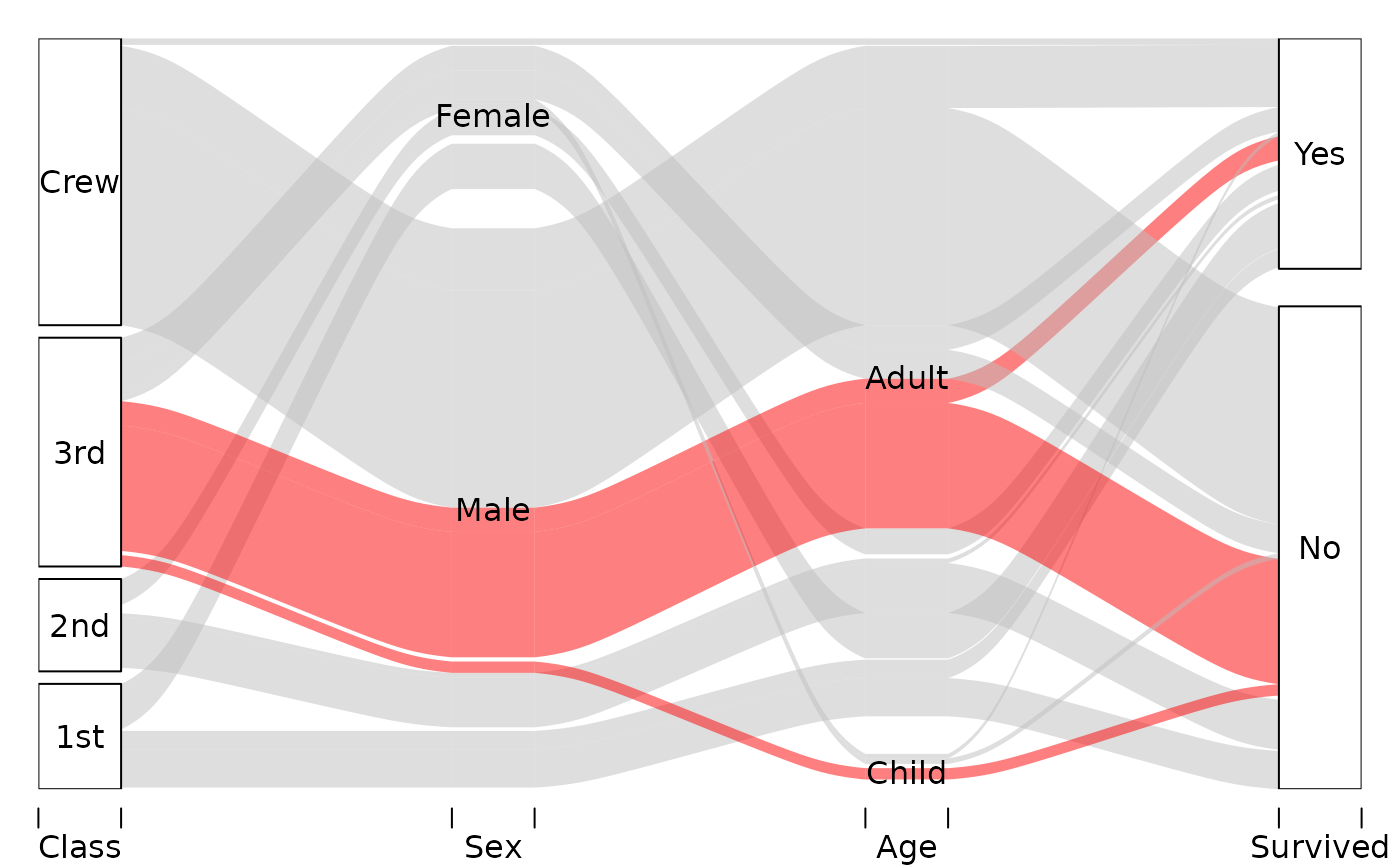

for (blocks in c(TRUE, FALSE, "bookends")) {

    # Elaborate alluvial diagram from main examples file
    alluvial( tit[, 1:4], freq = tit$Freq, border = NA,
              hide = tit$Freq < quantile(tit$Freq, .50),
              col = ifelse( tit$Class == "3rd" & tit$Sex == "Male",
                            "red", "gray" ),
              blocks = blocks )
}





# Data returned
x <- alluvial( tit2d[,1:2], freq=tit2d$Freq, xw=0.0, alpha=0.8,
          gap.width=0.1, col= "steelblue", border="white",
          layer = tit2d$Survived != "Yes" )
points( rep(1, 16), x$endpoints[[1]], col="green")
points( rep(2, 16), x$endpoints[[2]], col="blue")
