Creating Alluvial Diagrams

What is alluvial diagram?

Alluvial diagram is a variant of a Parallel Coordinates Plot (PCP) but for categorical variables. Variables are assigned to vertical axes that are parallel. Values are represented with blocks on each axis. Observations are represented with alluvia (sing. “alluvium”) spanning across all the axes.

You create alluvial diagrams with function alluvial(). Let us use Titanic dataset as an example. As it is a table, we need to convert it to a data frame

tit <- as.data.frame(Titanic, stringsAsFactors = FALSE)
head(tit)

##   Class    Sex   Age Survived Freq
## 1   1st   Male Child       No    0
## 2   2nd   Male Child       No    0
## 3   3rd   Male Child       No   35
## 4  Crew   Male Child       No    0
## 5   1st Female Child       No    0
## 6   2nd Female Child       No    0

and create the alluvial diagram:

alluvial(
  tit[,1:4],
  freq=tit$Freq,
  col = ifelse(tit$Survived == "Yes", "orange", "grey"),
  border = ifelse(tit$Survived == "Yes", "orange", "grey"),
  hide = tit$Freq == 0,
  cex = 0.7
)

We have four variables:

Class on the ship the passanger occupied
Sex of the passenger
Age of the passenger
Whether the passenger Survived.

Vertical sizes of the blocks are proportional to the frequency, and so are the widths of the alluvia. Alluvia represent all combinations of values of the variables in the dataset. By default the vertical order of the alluvia is determined by alphabetical ordering of the values on each variable lexicographically (last variable changes first) drawn from bottom to top. In this example, the color is determined by passengers’ survival status, i.e. passenger who survived are represented with orange alluvia.

Alluvial diagrams are very useful in reading various conditional and uncoditional distributions in a multivariate dataset. For example, we can see that:

Most of the Crew did not survived – majority of the height of the Crew category is covered by grey alluvia.
Majortity of the Crew where adult men.
Almost all women from the 1st Class did survive.
The women who did not survive come mostly from 3rd class.

Simple use

Minimal use requires supplying data frame(s) as first argument, and a vector of frequencies as the freq argument. By default all alluvia are drawn using mildly transparent gray.

Two variables Class and Survived:

# Survival status and Class
tit %>% group_by(Class, Survived) %>%
  summarise(n = sum(Freq)) -> tit2d

## `summarise()` has regrouped the output.
## ℹ Summaries were computed grouped by Class and Survived.
## ℹ Output is grouped by Class.
## ℹ Use `summarise(.groups = "drop_last")` to silence this message.
## ℹ Use `summarise(.by = c(Class, Survived))` for per-operation grouping
##   (`?dplyr::dplyr_by`) instead.

alluvial(tit2d[,1:2], freq=tit2d$n)

Three variables Sex, Class, and Survived:

# Survival status, Sex, and Class
tit %>% group_by(Sex, Class, Survived) %>%
  summarise(n = sum(Freq)) -> tit3d

## `summarise()` has regrouped the output.
## ℹ Summaries were computed grouped by Sex, Class, and Survived.
## ℹ Output is grouped by Sex and Class.
## ℹ Use `summarise(.groups = "drop_last")` to silence this message.
## ℹ Use `summarise(.by = c(Sex, Class, Survived))` for per-operation grouping
##   (`?dplyr::dplyr_by`) instead.

alluvial(tit3d[,1:3], freq=tit3d$n)

Customizing

There are several ways to customize alluvial diagrams with alluvial() the following sections illustrate probably most common usecases.

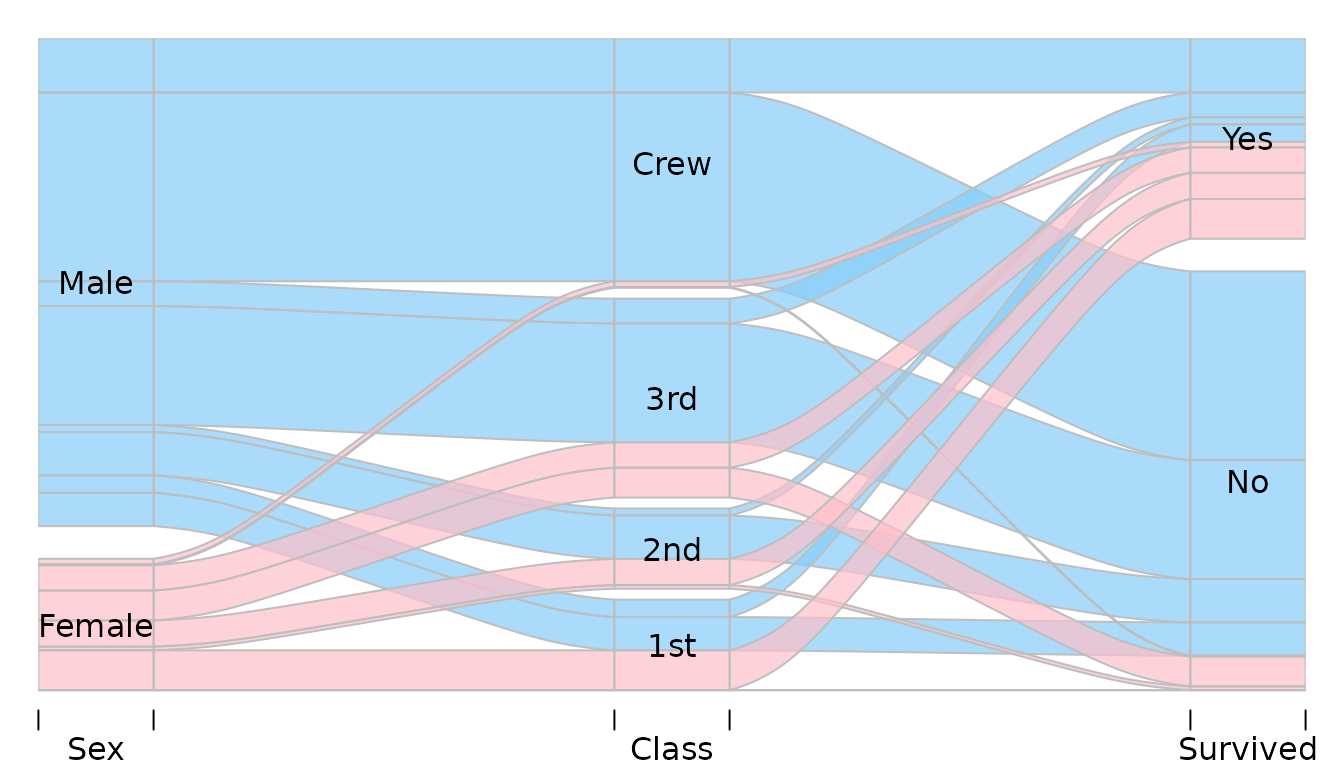

Customizing colors

Colors of the alluvia can be customized with col, border and alpha arguments. For example:

alluvial(
  tit3d[,1:3],
  freq=tit3d$n,
  col = ifelse( tit3d$Sex == "Female", "pink", "lightskyblue"),
  border = "grey",
  alpha = 0.7,
  blocks=FALSE
)

Hiding and reordering alluvia

Hiding

With alluvial sometimes it is desirable to omit plotting of some of the alluvia. This is most frequently the case with larger datasets in which there are a lot of combinations of values of the variables associated with very small frequencies, or even 0s. Alluvia can be hidden with argument hide expecting a logical vector of length equal to the number of rows in the data. Alluvia for which hide is FALSE are not plotted. For example, to hide alluvia with frequency less than 150:

alluvial(tit2d[,1:2], freq=tit2d$n, hide=tit2d$n < 150)

This skips drawing the alluvia corresponding to the following rows in tit data frame:

tit2d %>% select(Class, Survived, n) %>%
  filter(n < 150)

## # A tibble: 2 × 3
## # Groups:   Class [2]
##   Class Survived     n
##   <chr> <chr>    <dbl>
## 1 1st   No         122
## 2 2nd   Yes        118

You can see the gaps e.g. on the “Yes” and “No” category blocks on the Survived axis.

If you would rather omit these rows from the plot alltogether (i.e. no gaps), you need to filter your data before it is used by alluvial().

Changing “layers”

By default alluvia are plotted in sequence determined by the row order in the dataset. It determines which alluvia will be plotted “on top” of which others.

Consider simple data:

d <- data.frame(
  x = c(1, 2, 3),
  y = c(3 ,2, 1),
  freq=c(1,1,1)
)
d

##   x y freq
## 1 1 3    1
## 2 2 2    1
## 3 3 1    1

As there are three rows, we will have three alluvia:

alluvial(d[,1:2], freq=d$freq, col=1:3, alpha=1)
# Reversing the order
alluvial(d[ 3:1, 1:2 ], freq=d$freq, col=3:1, alpha=1)

Note that to keep colors matched in the same way to the alluvia we had to reverse the col argument too. Instead of reordering the data and keeping track of the other arguments plotting order can be adjusted with layer argument:

alluvial(d[,1:2], freq=d$freq, col=1:3, alpha=1,
         layer=3:1)

The value of layer is passed to order so it is possible to use logical vectors e.g. if you only want to put some of the flows on top. For example, for Titanic data to put all alluvia for all survivors on top we can:

alluvial(tit3d[,1:3], freq=tit3d$n,
         col = ifelse( tit3d$Survived == "Yes", "orange", "grey" ),
         alpha = 0.8,
         layer = tit3d$Survived == "No"
)

First layer is the one on top, second layer below the first and so on. Consequently, in the example above, Survived == "No" is ordered after Survived == "Yes" so the former is below the latter.

Adjusting vertical order of categories

By default alluvial() orders the values on each axis in an alphabetic order. This happens irrespectively of the ordering of observations in the plotted dataset. It is possible to override the default ordering by transforming the variables of interest into factors with a custom ordering of levels.

Consider the following example data:

d <- data.frame(
  col = c("#A6CEE3", "#1F78B4", "#B2DF8A", "#33A02C", "#FB9A99",
          "#E31A1C", "#FDBF6F", "#FF7F00"), # from RColorBrewer Paired palette
  Temperature = rep(c("cool", "hot"), each=4),
  Luminance = rep(c("bright", "dark"), 4),
  Color = rep(c("blue", "green", "red", "orange"), each=2)
) %>%
  mutate(
    n = 1
  )
d

##       col Temperature Luminance  Color n
## 1 #A6CEE3        cool    bright   blue 1
## 2 #1F78B4        cool      dark   blue 1
## 3 #B2DF8A        cool    bright  green 1
## 4 #33A02C        cool      dark  green 1
## 5 #FB9A99         hot    bright    red 1
## 6 #E31A1C         hot      dark    red 1
## 7 #FDBF6F         hot    bright orange 1
## 8 #FF7F00         hot      dark orange 1

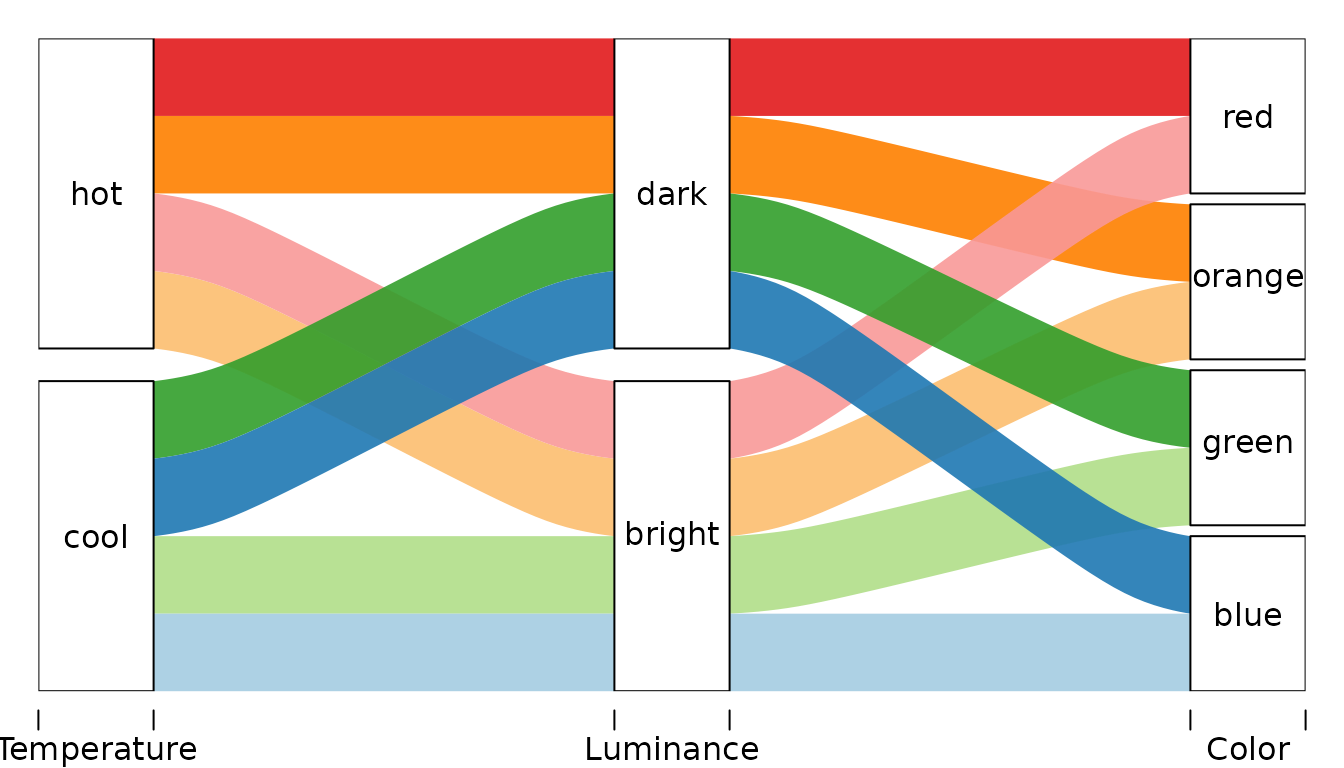

Plotting it with alluvial() with default settings will give:

alluvial(
  select(d, Temperature, Luminance, Color),
  freq=d$n,
  col = d$col,
  alpha=0.9
)

Let’s change the order of categories of:

the Color axis such that it is (from the bottom): green, blue, orange, red.
the Luminance axis such that it is reversed.

For each variable we create a factor with a vector of unique values of that variable sorted the way we want passed to levels argument of factor():

d <- d %>%
  mutate(
    Color_f = factor(Color, levels=c("green", "blue", "red", "orange")),
    Luminance_f = factor(Luminance, levels=c("dark", "bright"))
  )

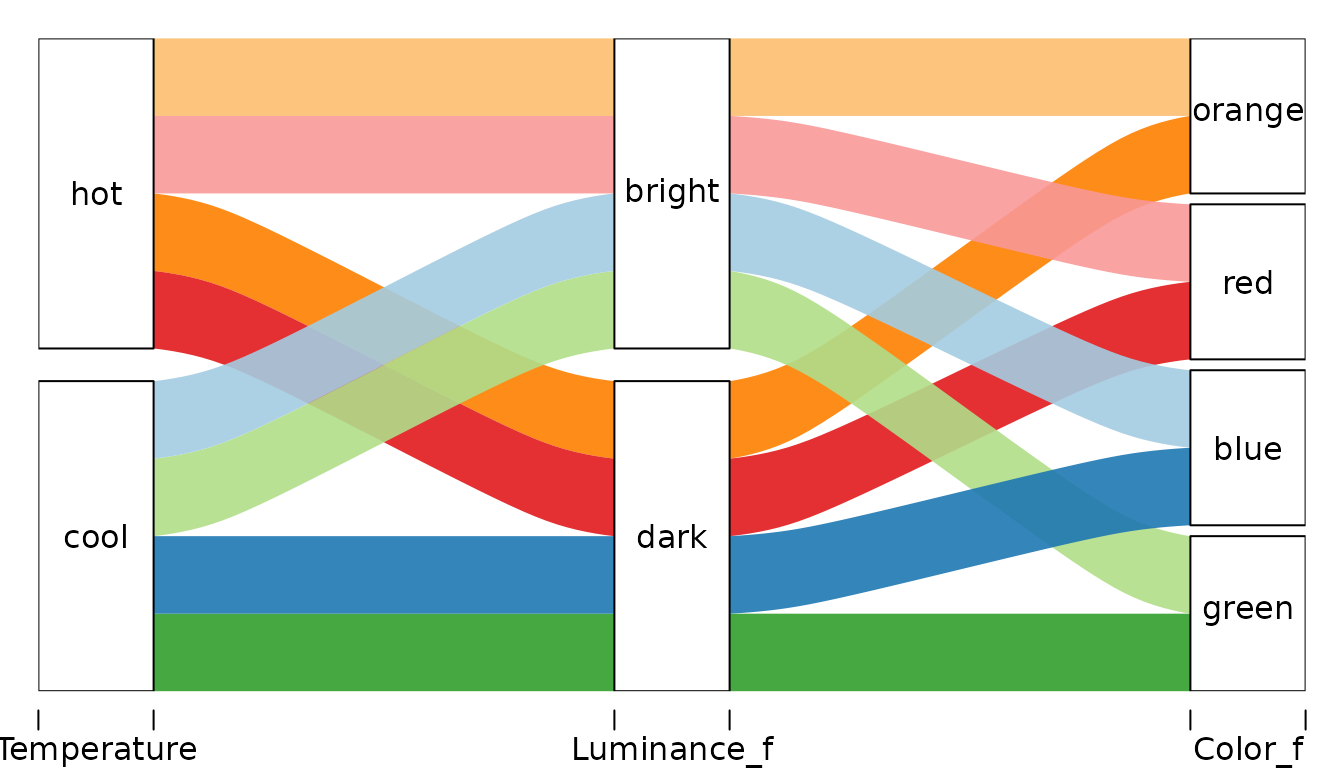

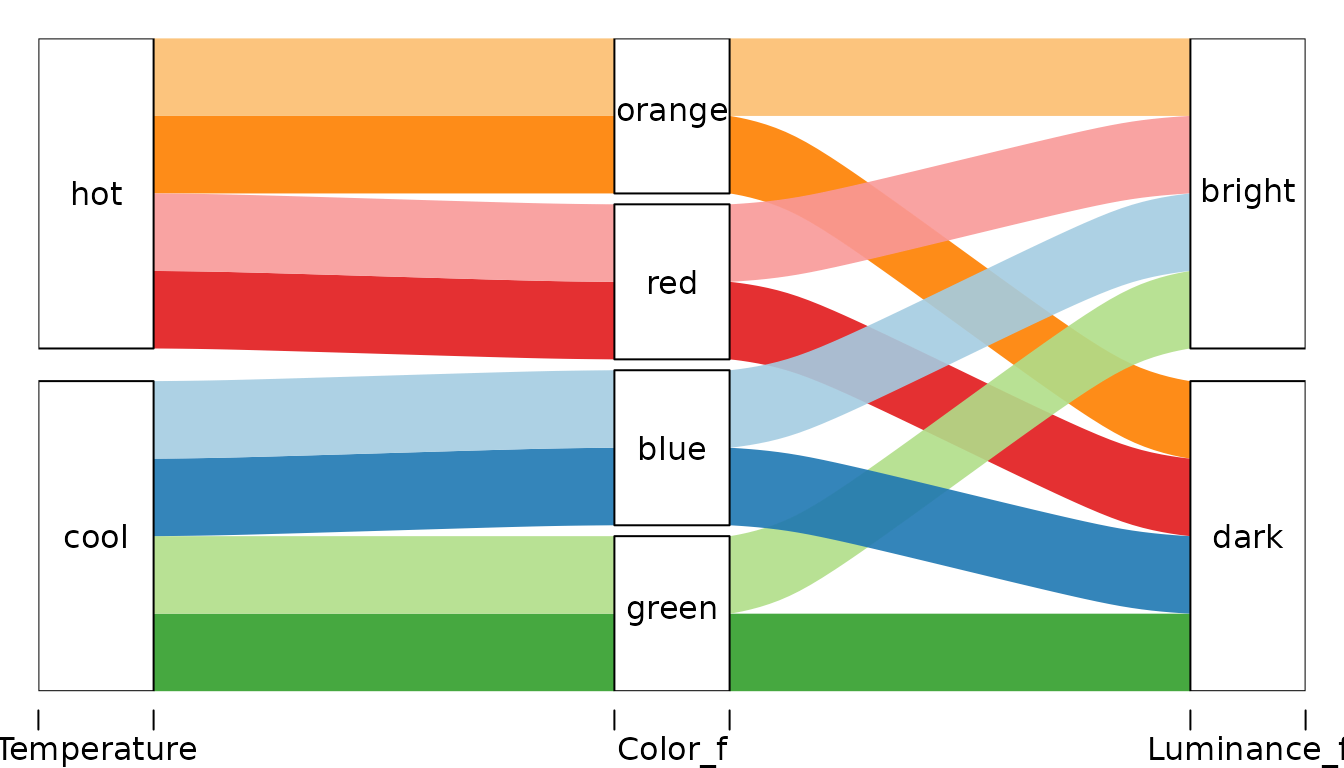

… and plot

alluvial(
  select(d, Temperature, Luminance_f, Color_f),
  freq=d$n,
  col = d$col,
  alpha=0.9
)

Another version recognizing that in data Color is nested in Temperature. Different axis order gives clearer picture of the data structure.

alluvial(
  select(d, Temperature, Color_f, Luminance_f),
  freq=d$n,
  col = d$col,
  alpha=0.9
)

Adjusting vertical order of alluvia

This feature is experimental!

Usually the order of the variables (axes) is rather unimportant. However, having particular two variables next to each other facilitates analyzing dependency between those two variables. In alluvial diagrams the ordering of the variables determines the vertical plotting order of the alluvia. This vertical order, together with setting blocks to FALSE, can be used to turn category blocks into stacked barcharts.

Consider two versions of subsets of the Titanic data that differ only in the order of variables.

tit %>% group_by(Sex, Age, Survived) %>%
  summarise( n= sum(Freq)) -> x

## `summarise()` has regrouped the output.
## ℹ Summaries were computed grouped by Sex, Age, and Survived.
## ℹ Output is grouped by Sex and Age.
## ℹ Use `summarise(.groups = "drop_last")` to silence this message.
## ℹ Use `summarise(.by = c(Sex, Age, Survived))` for per-operation grouping
##   (`?dplyr::dplyr_by`) instead.

tit %>% group_by(Survived, Age, Sex) %>%
  summarise( n= sum(Freq)) -> y

## `summarise()` has regrouped the output.
## ℹ Summaries were computed grouped by Survived, Age, and Sex.
## ℹ Output is grouped by Survived and Age.
## ℹ Use `summarise(.groups = "drop_last")` to silence this message.
## ℹ Use `summarise(.by = c(Survived, Age, Sex))` for per-operation grouping
##   (`?dplyr::dplyr_by`) instead.

In x we have Sex-Age-Survived-n while in y we have Survived-Age-Sex-n.

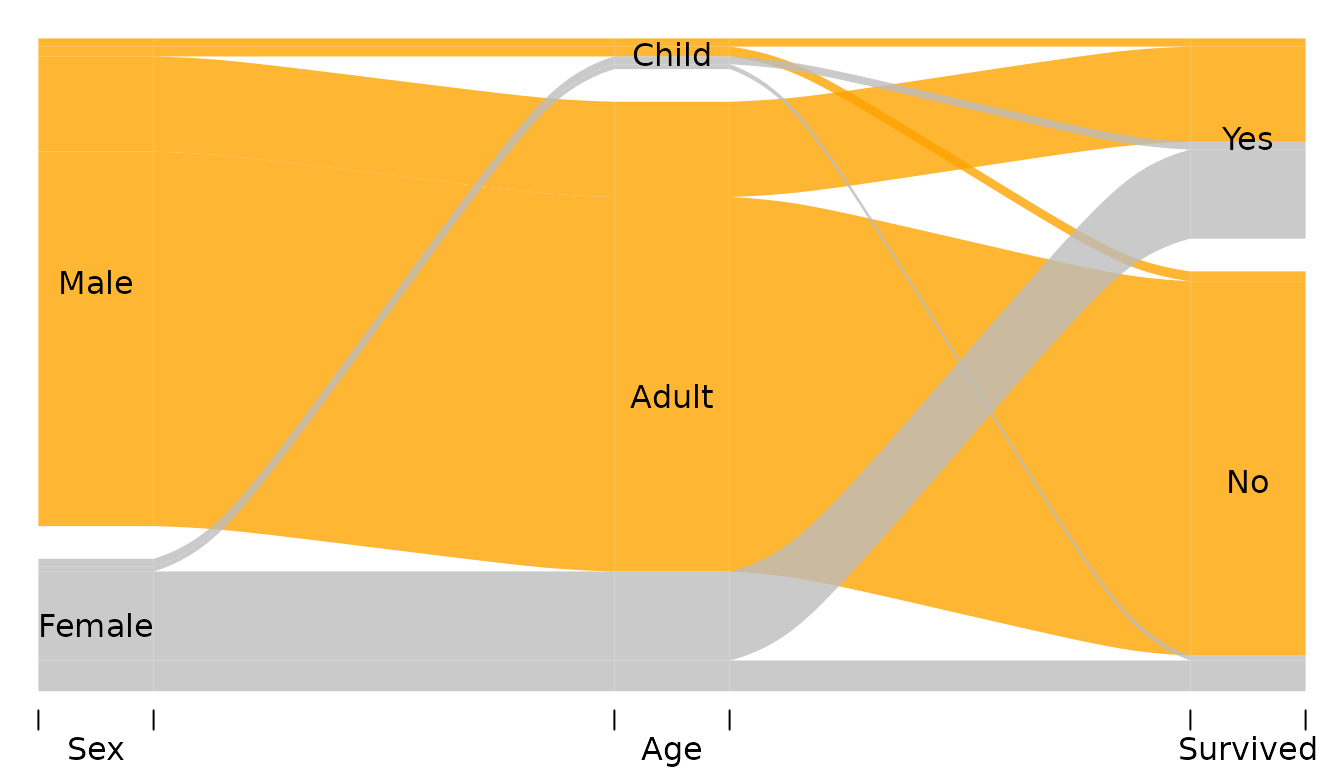

If we color the alluvia according to the first axis, the category blocks of Age and Survived become barcharts showing relative frequencies of Men and Women within categories of Age and Survived.

alluvial(x[,1:3], freq=x$n,
         col = ifelse(x$Sex == "Male", "orange", "grey"),
         alpha = 0.8,
         blocks=FALSE
)

Now we can see for example that

There were a little bit of more girls than boys (category Age == "Child")
Among surviors there were roughly the same number of Men and Women.

Argument ordering can be used to fully customize the ordering of each alluvium on each axis without the need to reorder the axes themselves. This feature is experimental as you can easily break things. It expects a list of numeric vectors or NULLs one for each variable in the data:

Value NULL does not change the default order on the corresponding axis.
A numeric vector should have length equal to the number of rows in the data and is determines the vertical order of the alluvia on the corresponding axis.

For example:

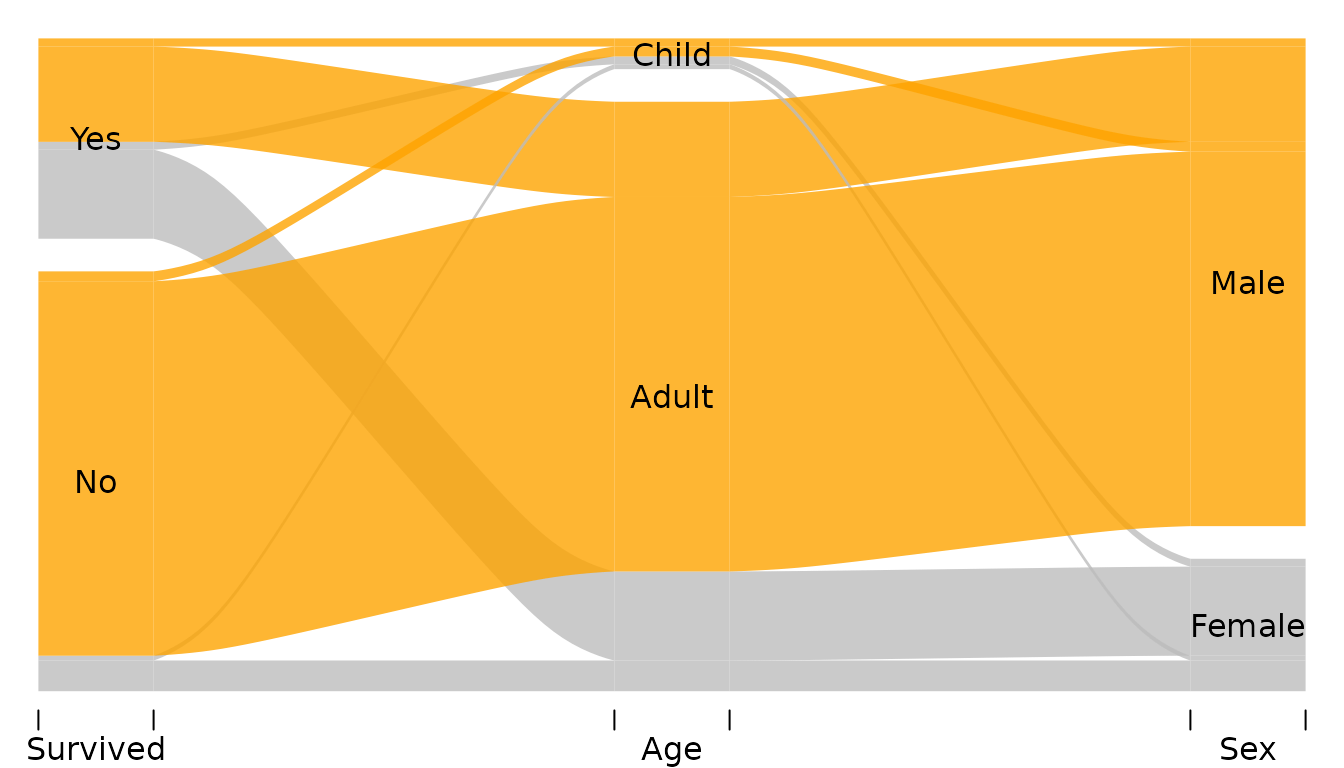

alluvial(y[,1:3], freq=y$n,
         # col = RColorBrewer::brewer.pal(8, "Set1"),
         col = ifelse(y$Sex == "Male", "orange", "grey"),
         alpha = 0.8,
         blocks = FALSE,
         ordering = list(
           order(y$Survived, y$Sex == "Male"),
           order(y$Age, y$Sex == "Male"),
           NULL
         )
)

The list passed to ordering has has three elements corresponding to Survived, Age, and Sex respectively (that’s the order of the variables in y). The elements of this list are

Call to order sorting the alluvia on the Survived axis. The alluvia need to be sorted according to Survived first (otherwise the categories “Yes” and “No” will be destroyed) and according to the Sex second.
Call to order sorting the alluvia on the Age axis. The alluvia need to be sorted according to Age first Sex second.
NULL leaves the default ordering on Sex axis.

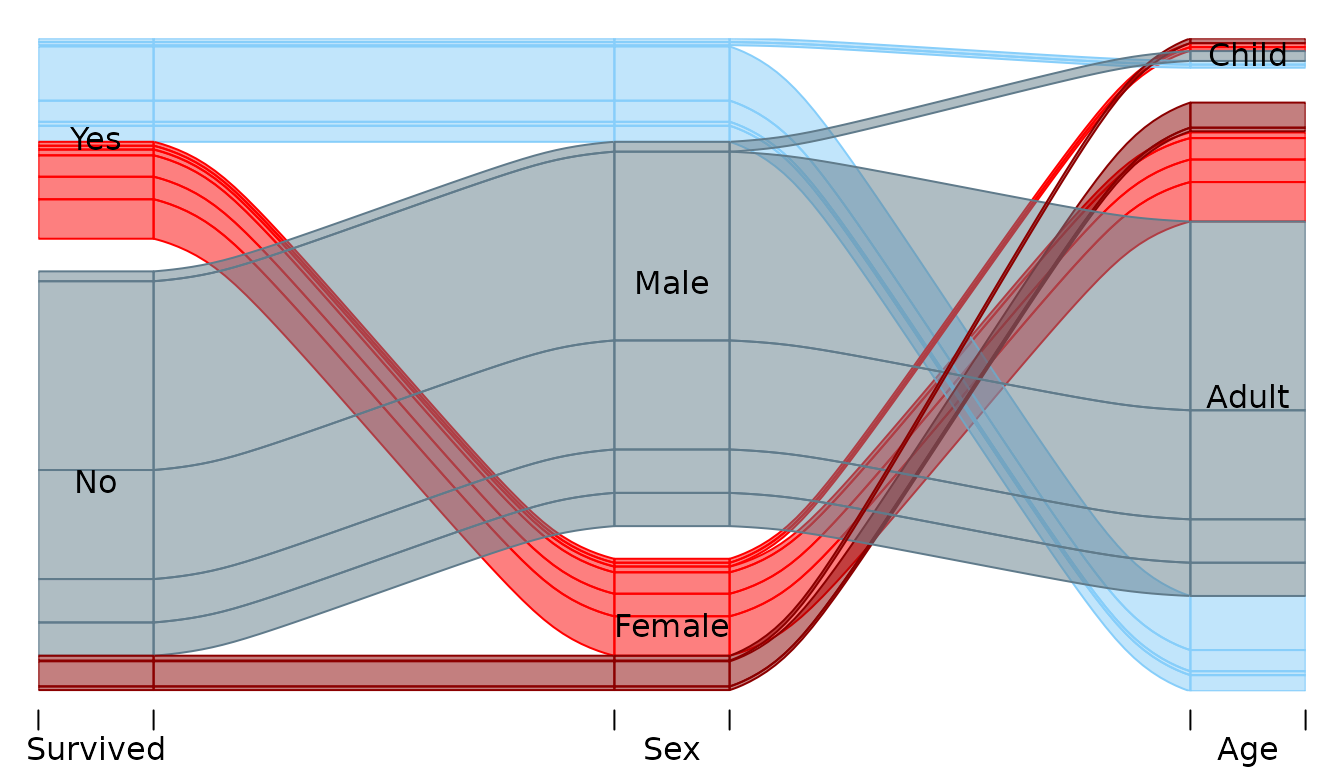

In the example below alluvia are colored by sex (red=Female, blue=Male) and survival status (bright=survived, dark=did not survive). Each category block is a stacked barchart showing relative freuquencies of man/women who did/did not survive. The alluvia are reordered on the last axis (Age) so that Sex categories are next each other (red together and blue together):

pal <- c("red4", "lightskyblue4", "red", "lightskyblue")

tit %>%
  mutate(
    ss = paste(Survived, Sex),
    k = pal[ match(ss, sort(unique(ss))) ]
  ) -> tit


alluvial(tit[,c(4,2,3)], freq=tit$Freq,
         hide = tit$Freq < 10,
         col = tit$k,
         border = tit$k,
         blocks=FALSE,
         ordering = list(
           NULL,
           NULL,
           order(tit$Age, tit$Sex )

         )
)
